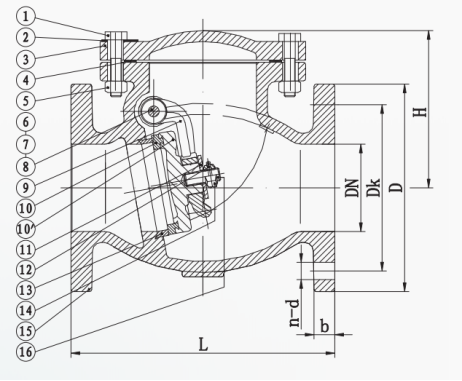

CHV-5103 MSS SP-71 125LB METAL SEAT SWING CHECK VALVE
DIMENSIONS IN INCHES
|
DN |
L |
Dk |
D |
b |
n-d |
H |
|
2〃 |
203.2 |
120.5 |
152 |
17. 5 |
4-19 |
113 |
|
2. 5” |
215.9 |
139.5 |
178 |
20.7 |
4-19 |
133 |
|
3〃 |
241.3 |
152.5 |
191 |
22.3 |
4-19 |
144 |
|
4〃 |
292 |
190.5 |
229 |
23.5 |
8-19 |
168 |
|
5〃 |
330.2 |
216 |
254 |
23.8 |
8-22 |
198 |
|
6〃 |
355.6 |
24L5 |
279 |
25.4 |
8-22 |
217 |
|
8〃 |
495 |
298.5 |
343 |
28.6 |
8-22 |
261 |
|
10〃 |
622 |
362 |
406 |
30.2 |
12-25 |
287 |
|
12〃 |
698.5 |
432 |
483 |
31.8 |
12-25 |
319 |
|
14〃 |
787 |
476 |
533 |
35 |
12-29 |
443 |
|
16〃 |
914 |
540 |
597 |
36.6 |
16-29 |
595 |
|
18〃 |
978 |
578 |
635 |
39.7 |
16-32 |
665 |
|
20" |
978 |
635 |
699 |
42.9 |
20-32 |
732 |
|
24" |
1295 |
749.5 |
813 |
47.7 |
20-35 |
825 |
MATERIALS LIST
| No. | Part | Material | USA Standard |
|
1 |
Bolts | Steel | ASTM A307 B |
|
2 |
Identification Plate | Aluminium | |
|
3 |
Bonnet | Cast Iron | ASTM A126 CLASS B |
|
4 |
Body Gasket | Graphite | NON ASBESTOS |
|
5 |
Nuts | Steel | ASTM A307 B |
|
6 |
Side Plug | Cast Bronze | ASTM B62 |
|
7 |
Gasket | Fiber | |
|
8 |
Hanger Pin | Cast Bronze | ASTM B62 |
|
9 |
Hanger | Cast Iron | ASTM A126 CLASS B |
|
10 |
Disc Ring | Cast Bronze | ASTM B62 |
|
10' |
Disc | Cast Iron | ASTM A126 CLASS B |
|
11 |
Washer | Steel | ASTM A307 B |
|
12 |
Split Pin | Stainless Steel | ASTM 420 S42000 |
|
13 |
Seat Ring | Cast Bronze | ASTM B62 |
|
14 |
Disc Nut | Steel | ASTM A307 B |
|
15 |
Body | Cast Iron | ASTM A126 CLASS B |
|
16 |
Stud Bolt | Steel | ASTM A307 B |
